HDPE double wall corrugated (DWC) pipe: sizes, ring stiffness and installation

What DWC means

DWC pipe — double wall corrugated pipe — has two walls doing two different jobs. The inner wall is smooth, so it carries flow with the same low friction as a solid pipe. The outer wall is corrugated, and the corrugation is what gives the pipe its ring stiffness without the extra HDPE resin a solid-wall pipe of the same stiffness would need. That's the whole idea: hydraulic capacity from the smooth bore, structural stiffness from the ribbed outer profile, less material and less weight than a single-wall pipe built to the same load rating.

Sizes and ring stiffness

HDPE corrugated pipe runs from around 100mm up to 1200mm diameter in most manufacturers' ranges, covering everything from a house connection to a trunk storm sewer. Ring stiffness is classed SN4 or SN8 (kN/m²) — SN4 for shallow cover and light traffic, SN8 where the pipe sits under a road or carries deeper backfill. Get the class wrong and you either pay for stiffness you don't need or under-spec a pipe that ovals under load. Confirm bury depth, cover, and live load before you order, not after.

Where DWC pipe gets used

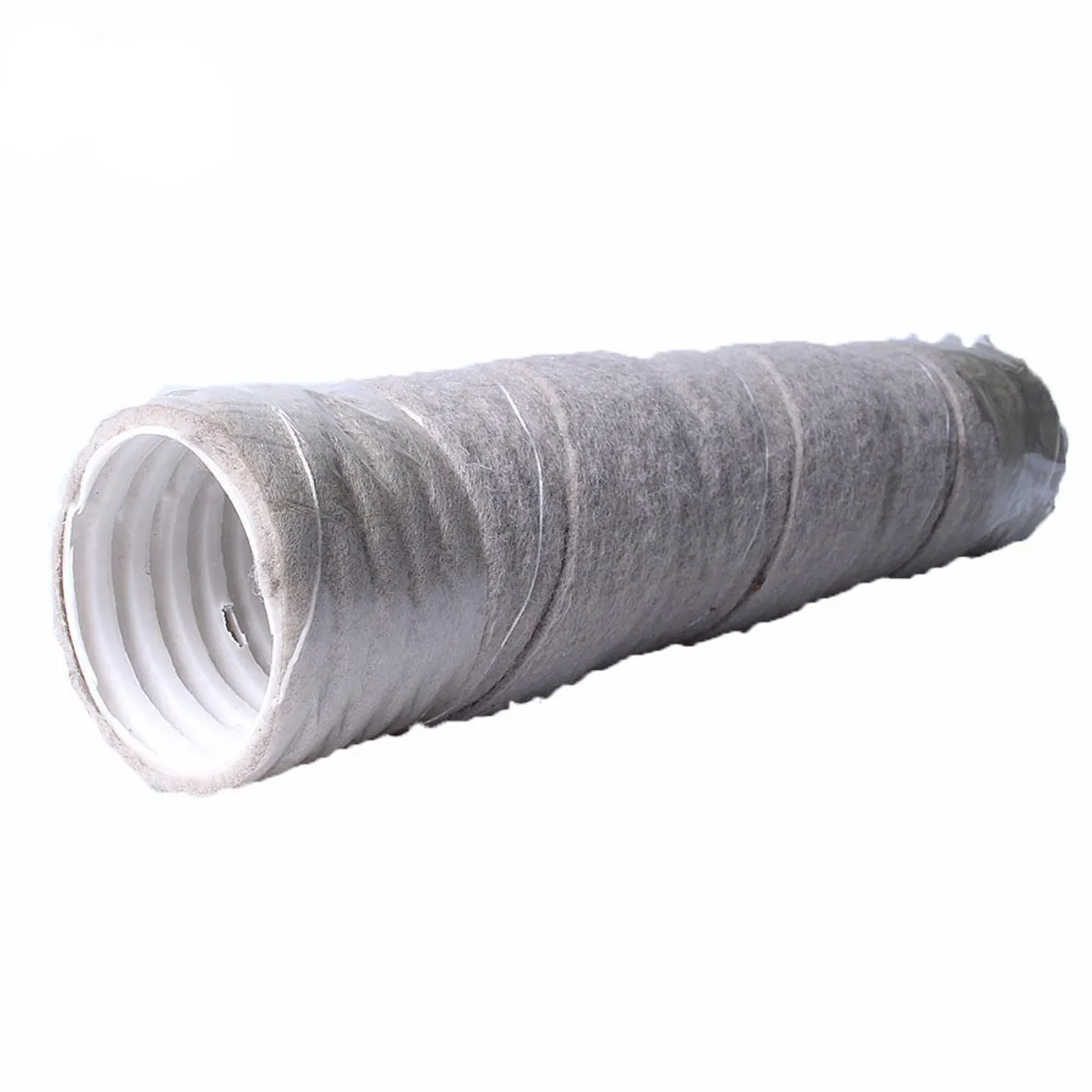

Storm drainage and highway culverts are the biggest markets for corrugated drainage pipe — it moves large flows cheaply and installs fast in open trench or trenchless bore. Gravity sewerage uses the same profile where corrosion resistance matters more than a concrete or ductile iron line offers. In agricultural and site drainage, a perforated version of the same double-wall pipe collects and moves subsurface water, usually paired with a nonwoven geotextile filter wrap so fines don't wash into the corrugations and choke flow over a season — the mechanics are the same as any geotextile-wrapped drainage pipe. Where the run also needs a flow path along a slope or behind a wall rather than through it, a geonet drainage composite does that job instead of pipe.

Installation basics

Bed the pipe on compacted granular material, never directly on native soil, and haunch the sides so the pipe has side support before backfill load comes on — ring stiffness on the spec sheet assumes proper haunching, not a pipe sitting loose in a trench. Joints are bell-and-spigot with a gasket; push together, don't force. Backfill in lifts and compact each one — a pipe that ovals in service almost always traces back to backfill that went in too fast or wasn't compacted in layers. On perforated runs, wrap or filter-sock the pipe before backfill so the drainage function survives past the first storm.

What drives the price

Diameter and SN class are the two biggest cost drivers — an SN8 400mm pipe costs meaningfully more per metre than SN4 at the same size, because the stiffer class needs more resin in the corrugation. Perforated versus solid, single-wall socket fittings, and freight (HDPE pipe is bulky, and freight on large diameters can rival material cost) round out the quote. Send us the diameter, SN class, length, and whether you need perforated or solid, and we'll quote a landed price per metre rather than a bare ex-works number.
